SportsPlay Equipment

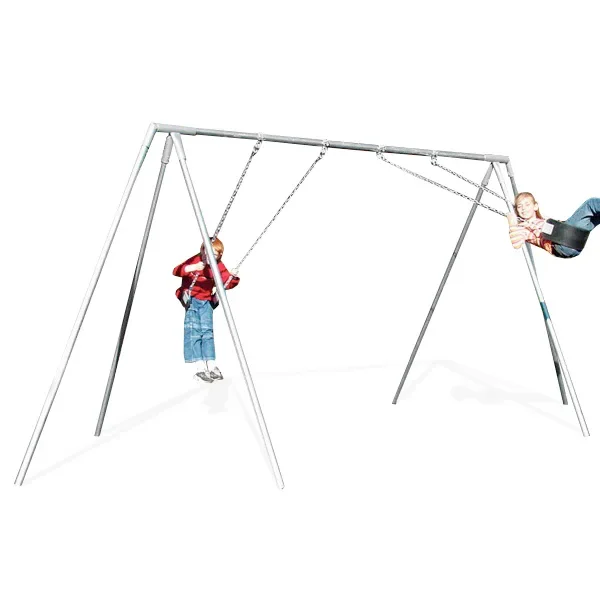

Primary Tripod Swing 12 Foot
Request Quote for Pricing
Twelve feet is the highest swing height offered for playground use.
- Space Needed: 48' x 33'
- Use Zone: 1 Bay (48' x 33'); 2 Bays (48' x 44'); 3 Bays (48' x 55'); 4 Bays (48' x 66'); Measurement using Standard Belt Seats (changing seat type can change the required space)
- Footprint: 48' × 33'
- Ages: 2 to 12 years
- Material: Steel
- Weight: 240.00 LBS
- SKU: 581222
Twelve feet is the highest swing height offered for playground use. This swing comes with all the equipment for set up including cut-proof seats, chains, hangers, and more. Our 12 foot Primary Tripod Swings come with black cut-proof belt seats, 4/0 galvanized welded steel chain, and self-lubricating swing hangers. There are 2 seats per 10 foot section. The dimensions are as follows: 2-3/8" O.D. galvanized top rail, 1-7/8" O.D. galvanized legs, 12' installed height.
Highlights:
- Tall swings that allow children to swing higher and further
- Uses belt seats
- Works on children's strength
- Matches most other play equipment
More Metal Swing Sets
PlaygroundEquipment.com
Elite Series 5.0 inch Single Post Adaptive Swing 8 foot
PlaygroundEquipment.com
Early Childhood T Swing
PlaygroundEquipment.com
Elite Series 3.5 inch Arch Post Swing 8 Foot
PlaygroundEquipment.com
Elite Series 5 inch Single Post Cantilever Swing
PlaygroundEquipment.com
Elite Series 5 inch Single Post Swing 8 Foot
PlaygroundEquipment.com
Elite Series 3.5 inch Arch Post Adaptive Swing 8 Foot
Customer Questions
Chris asked:
What is the weight capacity of this swing set? Thanks!
Hello Chris and thank you for your question. Our swings are commercial grade products that can withstand years of normal everyday use. They are used in public parks, churches, schools, etc. This swing is made for children ages 2-12 years old.
Yamini asked:
What is the maximum weight capacity for each seat? Is it safe people weighing 200- 250 lbs? Can 2 adults swing at the same time on a single bay with 2 swings?
Hello Yamini and thank you for your question. Our swings are commercial grade products that can withstand years of normal everyday use. This swing is made for children ages 2-12 years old.
Tracy asked:
So what is the weight limit? Can 2 chubby 10 year old kids that weigh 180 - 200 lbs each both safely swing on this set?
Hello Tracy, The limitations for our swing sets are not set by physical weight but limited by age. This swing set in particular age range is 2-12.
Taylor asked:
What is the rating on weight limit? Could Adults swing on this set?
Hello Taylor and thank you for your question. Although all playground equipment is only rated to the age of 12 years old, our equipment is commercial grade and built to withstand years of heavy use.
Frequently Asked Questions
What age groups can safely use a 12 foot swing set?
This 12 foot swing height is designed for school-age children 5-12 years. The increased height provides longer swing arcs that older children prefer, but requires greater fall zones. Your site plan must include 24 feet of clearance in front and behind the swing structure per ASTM F1487 standards.
How much space do I need around the Primary Tripod Swing 12 Foot?
You need a minimum 30 foot by 54 foot area for safe installation. This includes the 12 foot structure length plus required clearance zones of 24 feet front and back, 6 feet on each side. The tripod design eliminates corner post interference, making it ideal for rectangular spaces.
What's included with the Primary Tripod Swing purchase?
Each unit includes two black cut-proof belt seats, 4/0 galvanized welded steel chain, self-lubricating swing hangers, 2-3/8 inch galvanized top rail, and 1-7/8 inch galvanized leg posts. You'll need to purchase protective surfacing and arrange installation separately. The swing hangers require no ongoing lubrication maintenance.
